Horizontal Design Oval Column Heating Radiator UK

  • With a strict manufacturing process, our radiators offer you a heating solution at an competitive price. They easily fit into your central heating system like a normal household radiator, meaning no complicated installation. The water inlet/outlet size of radiators is 1/2". All of our radiators come with lifetime warranty.


Features And Details

  • High quality triple layered finish.
  • Manufactured in accordance with BS EN 442
  • 1/2" inlets and outlets
  • Made from 1.6mm Premium Mild Steel
  • Unique hot water circulation structure

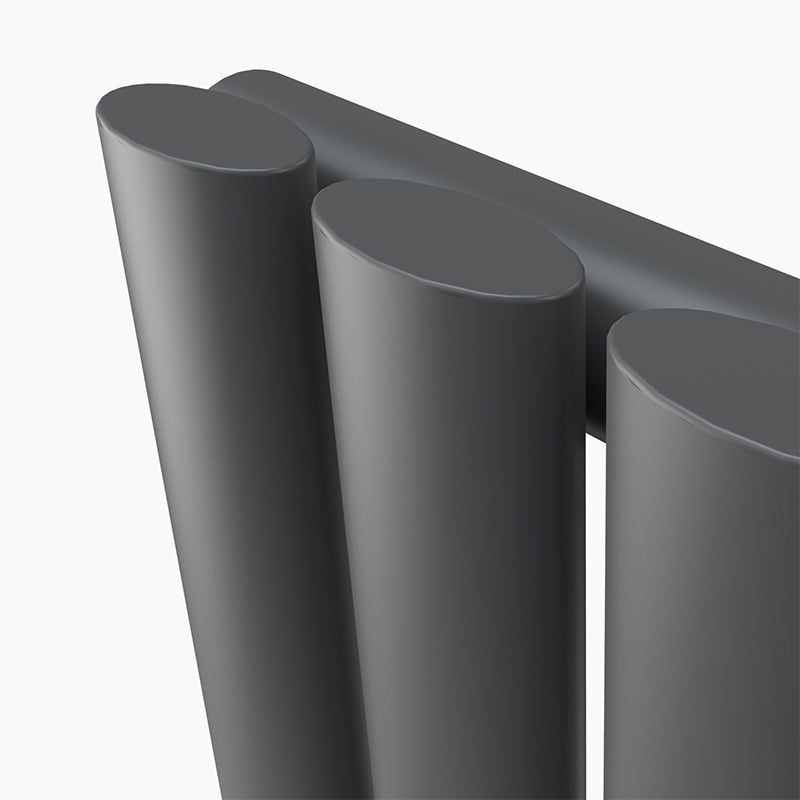

  • Modern style horizontal oval column high quality radiator
  • Wall mount or stand-up installation
  • Brackets and fixings included
  • Valves are not included.But can be bought separately.Click here to buy our high quality valves.

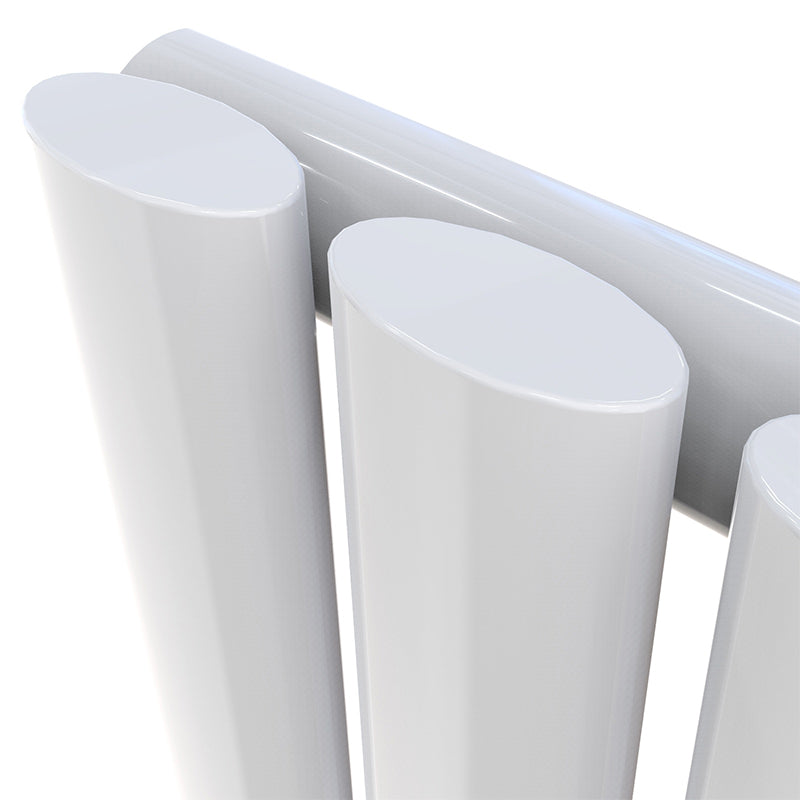

Single Oval Column Radiators:

Model Size (HxW) Panel Pipe Amount Weight (KG) Heat Output Data Sheet
Watt BTU

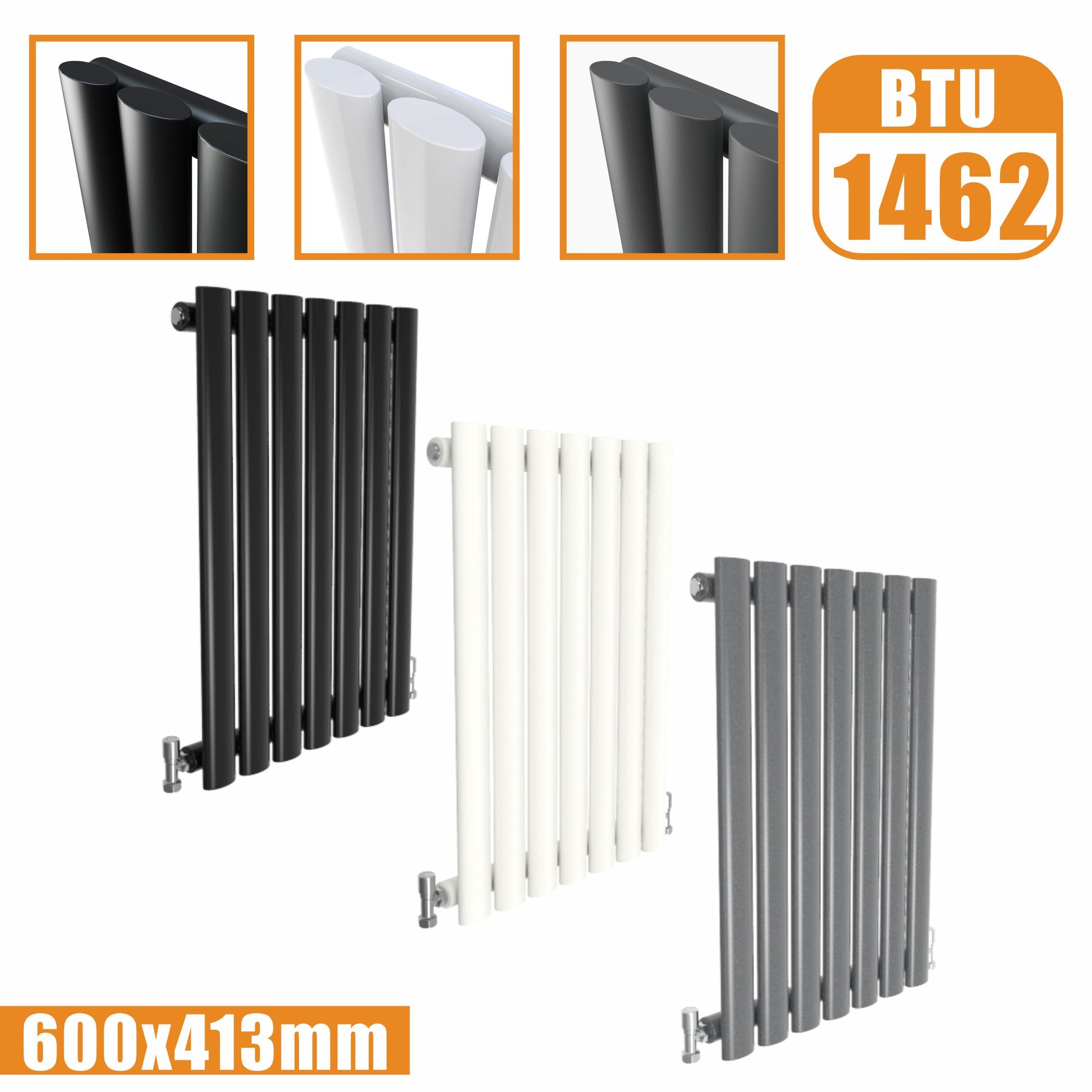

Oval column 600 x 413 mm Single 7 11 428 1462
Click to view

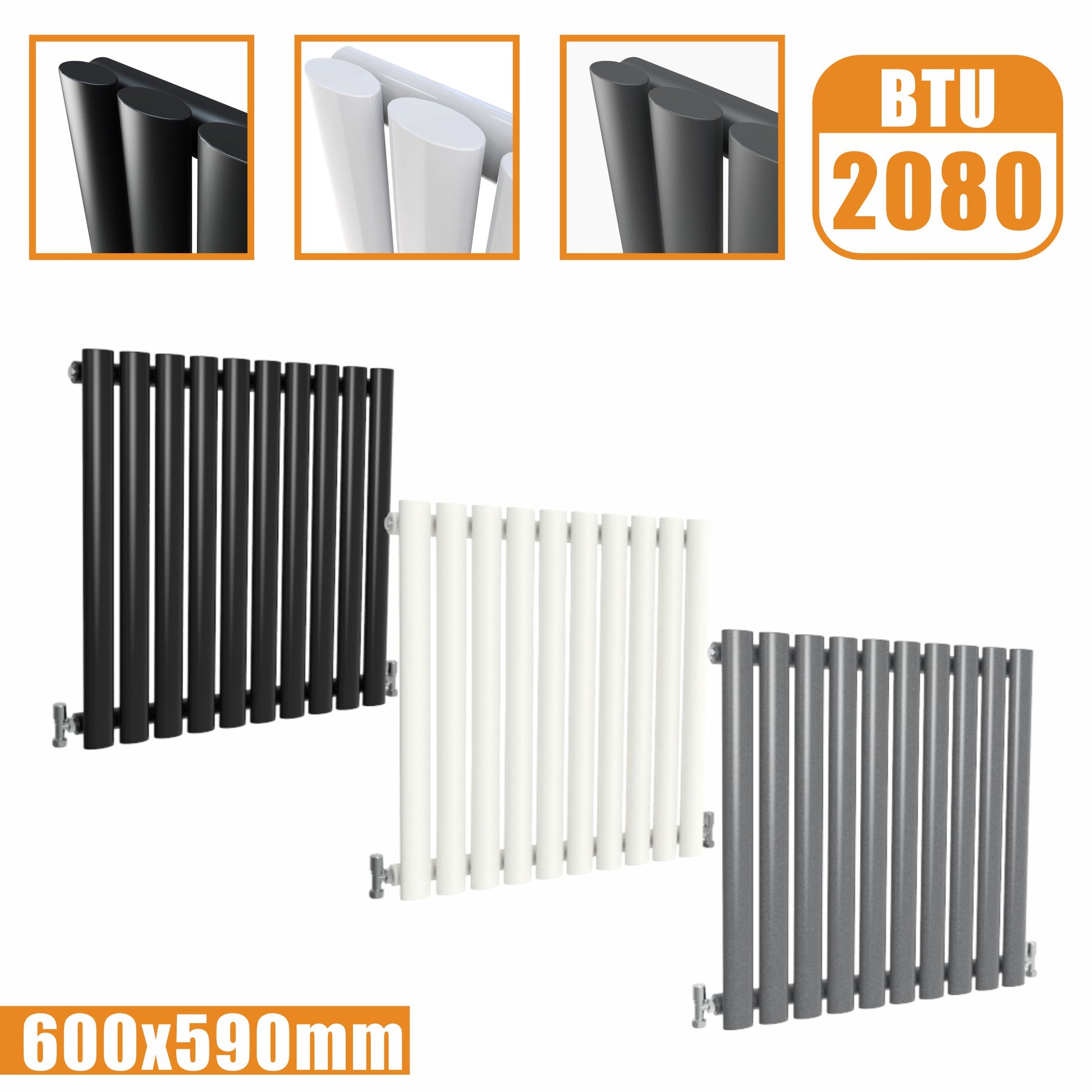

Oval column 600 x 590 mm Single 10 11.2 609 2080
Click to view

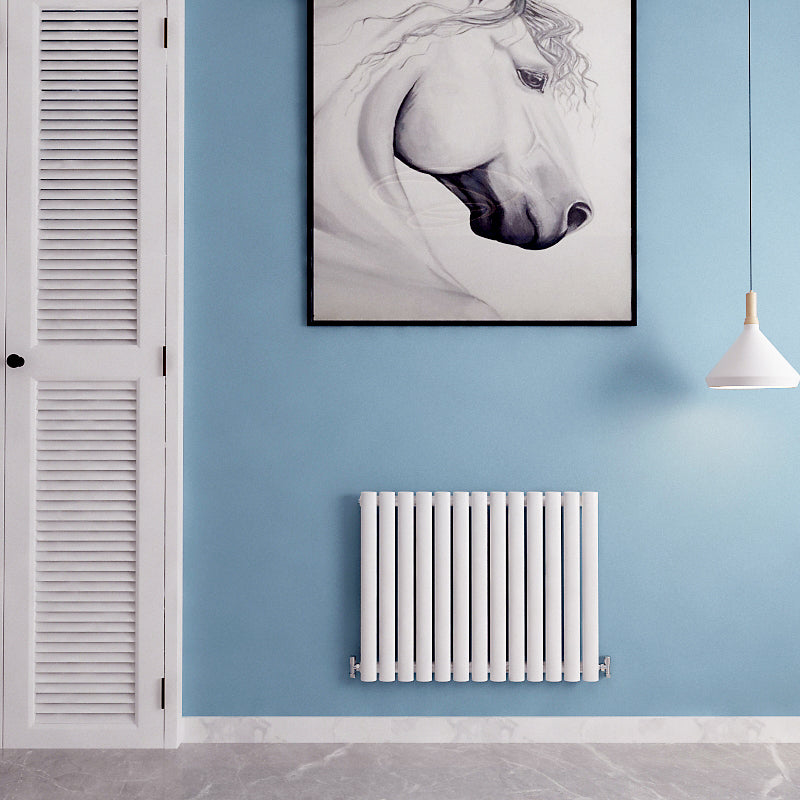

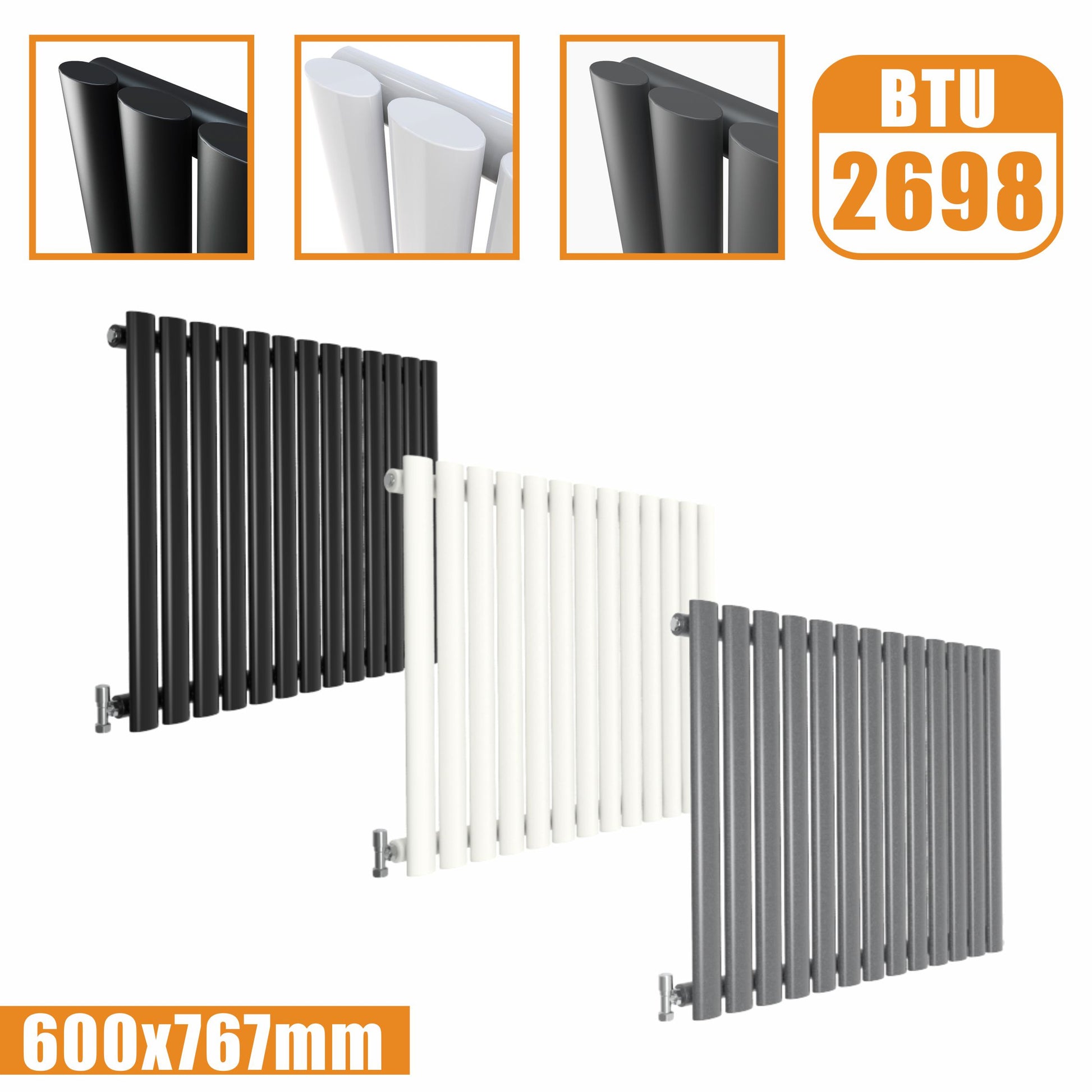

Oval column 600 x 767 mm Single 13 14.5 791 2698
Click to view

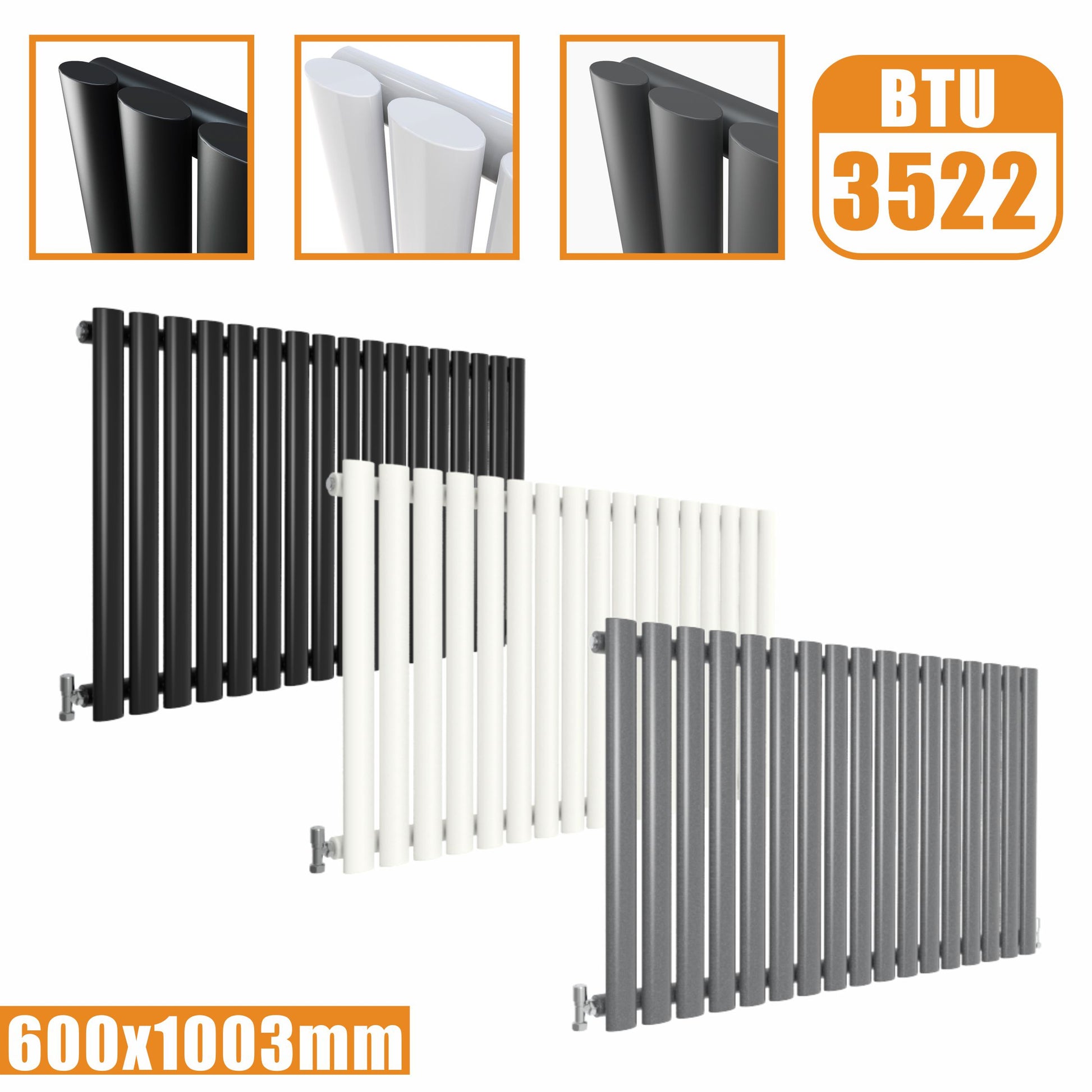

Oval column 600 x 1003 mm Single 17 19 1032 3522
Click to view

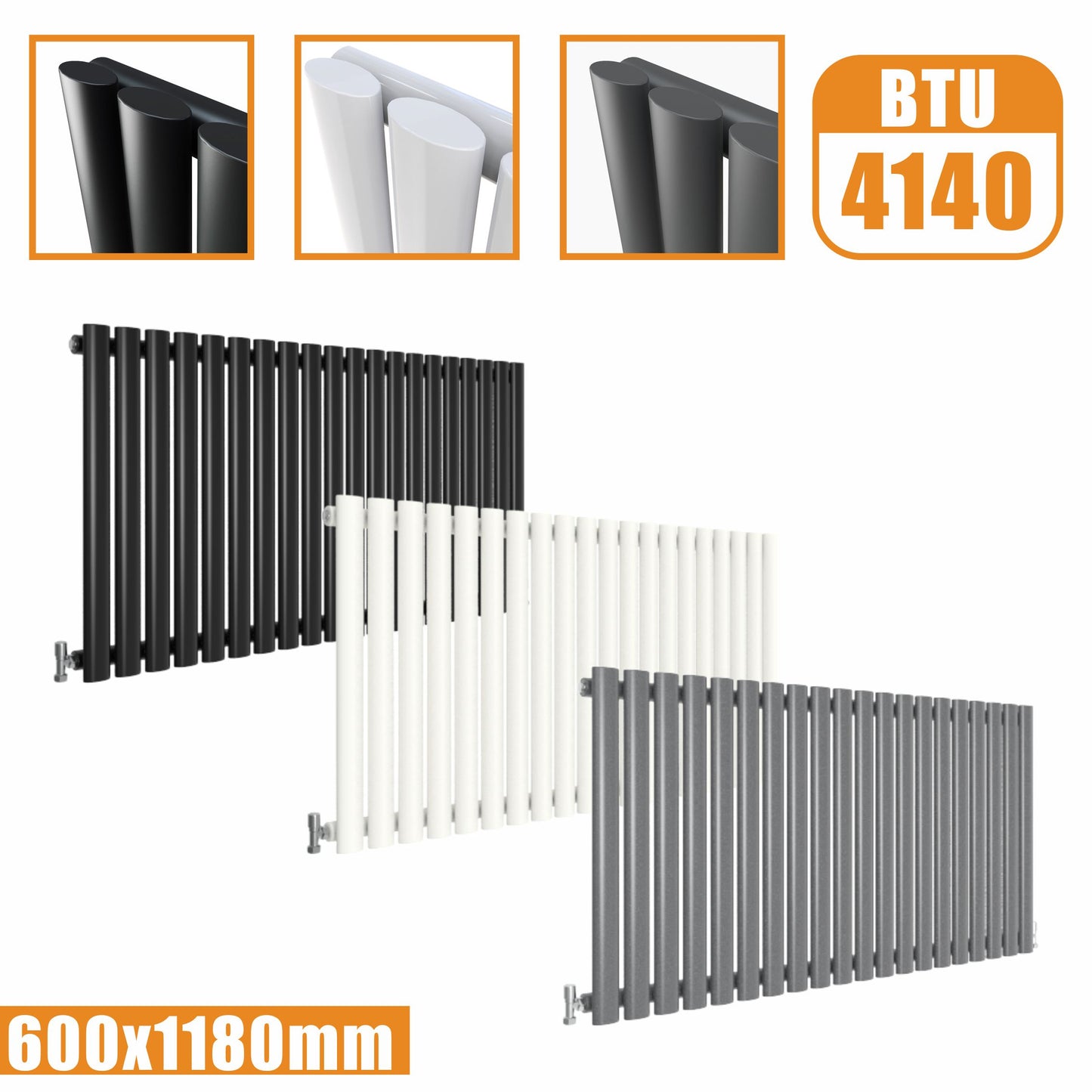

Oval column 600 x 1180 mm Single 20 22.4 1213 4140
Click to View

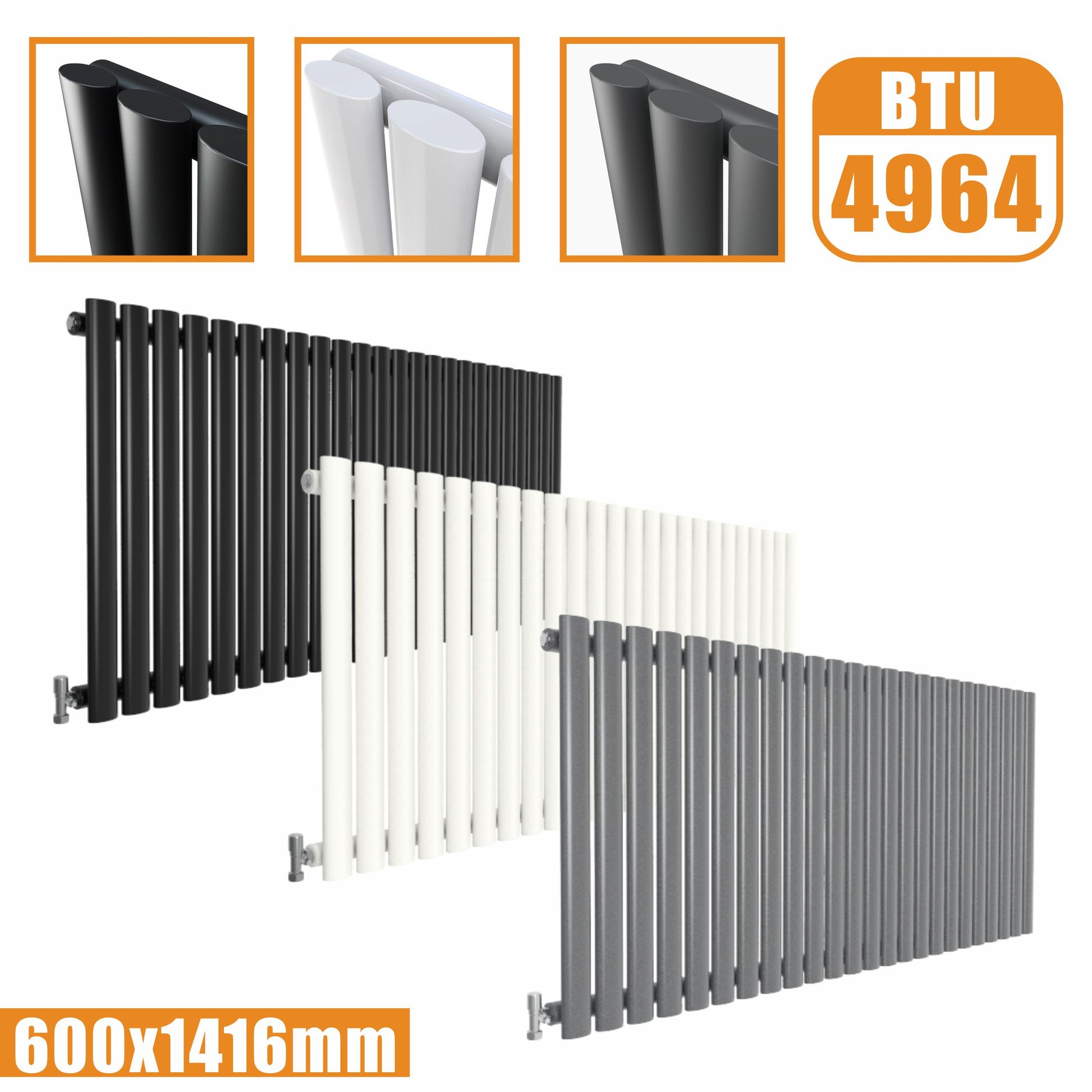

Oval column 600 x 1416 mm Single 24 26.9 1454 4964
Click to View

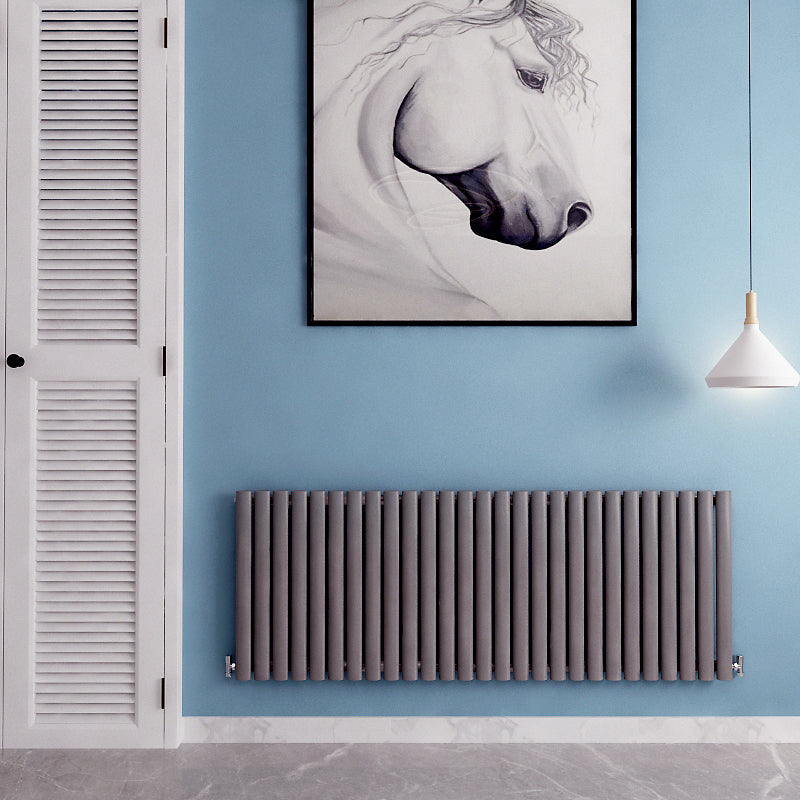

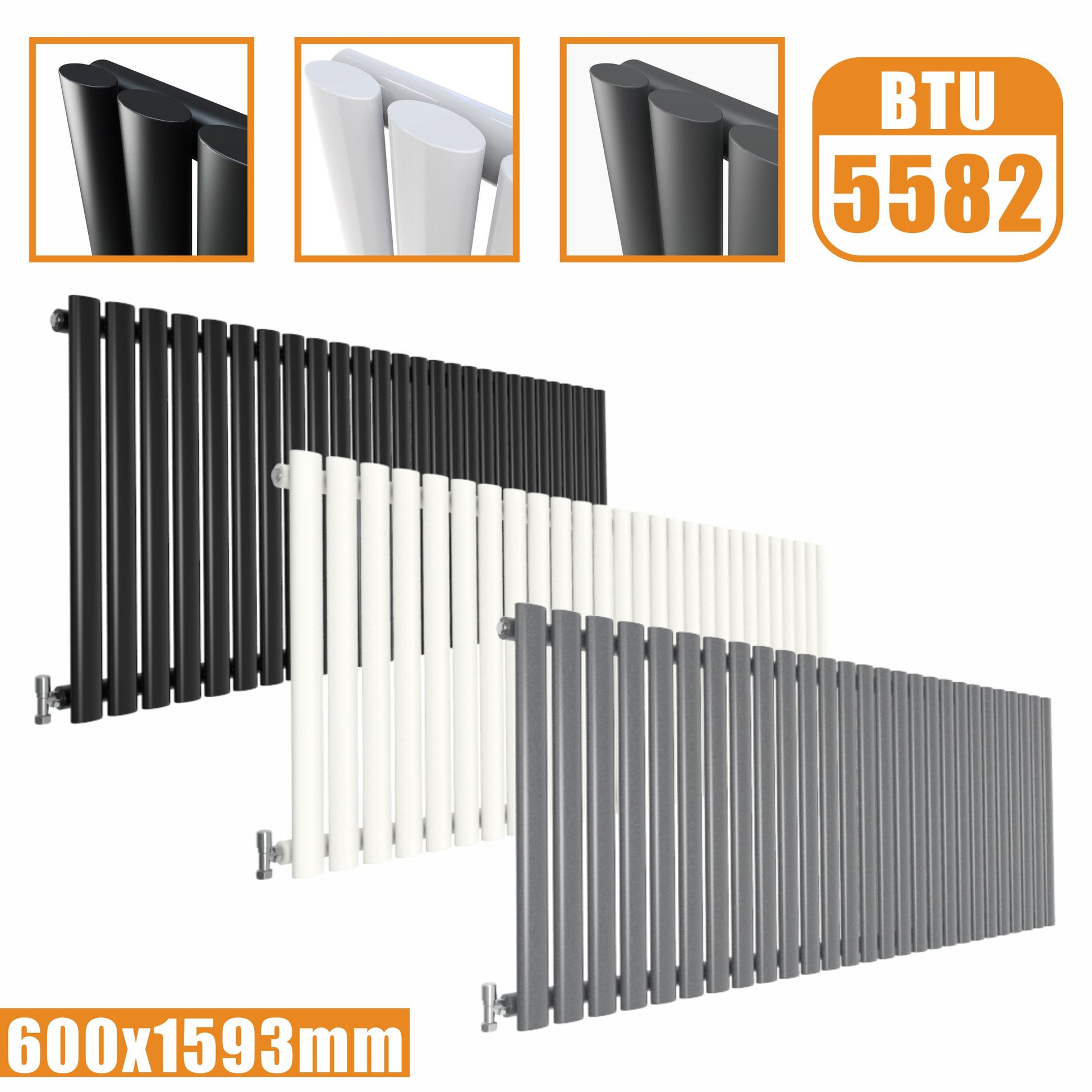

Oval column 600 x 1593 mm Single 27 30.2 1636 5582
Click to View

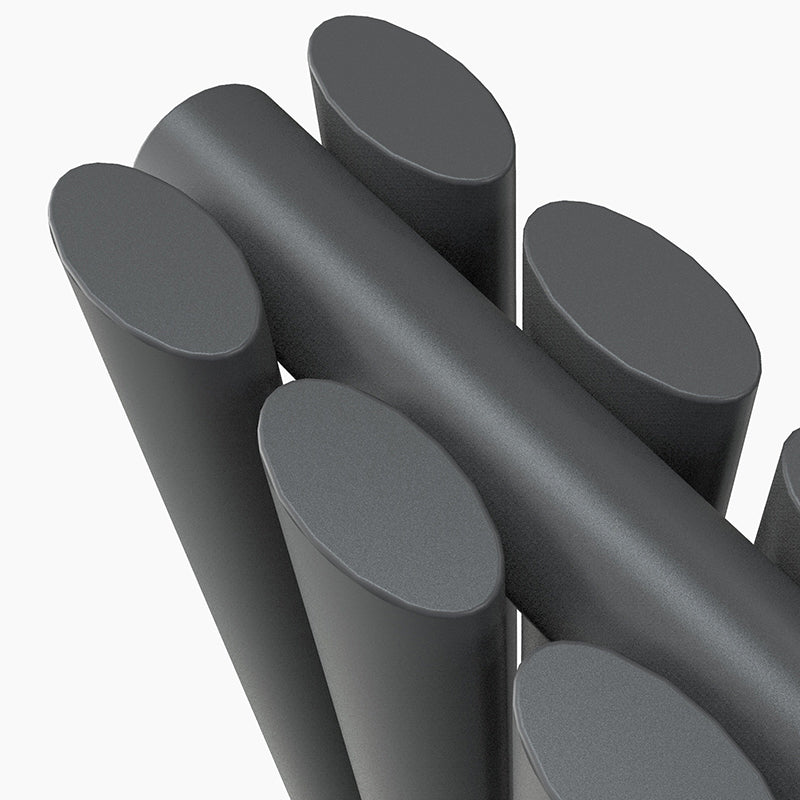

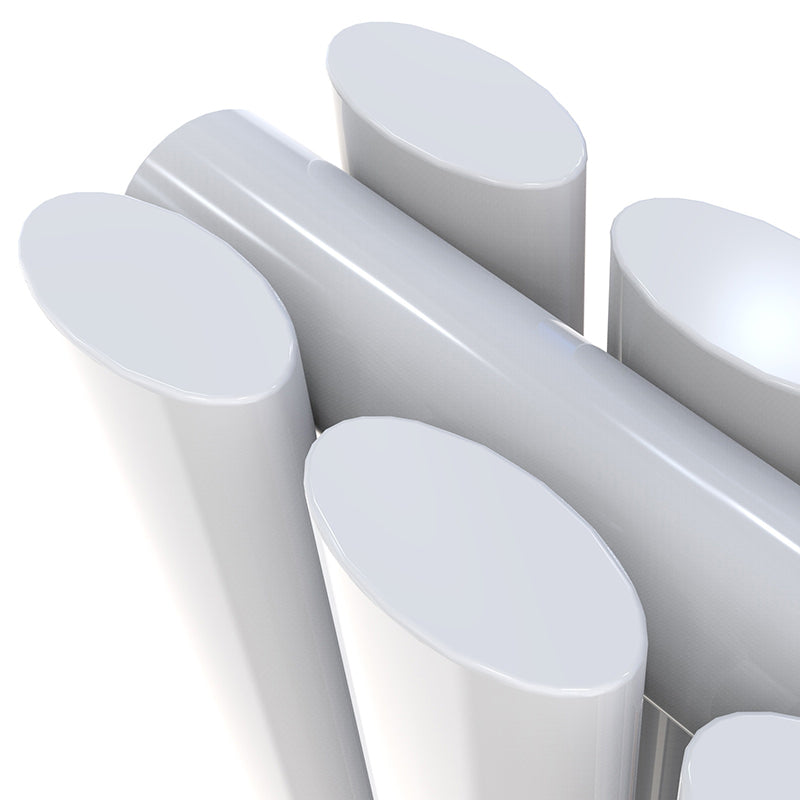

Double Oval Column Radiators:

Model Size (HxW) Panel Pipe Amount Weight (KG) Heat Output Data Sheet
Watt BTU

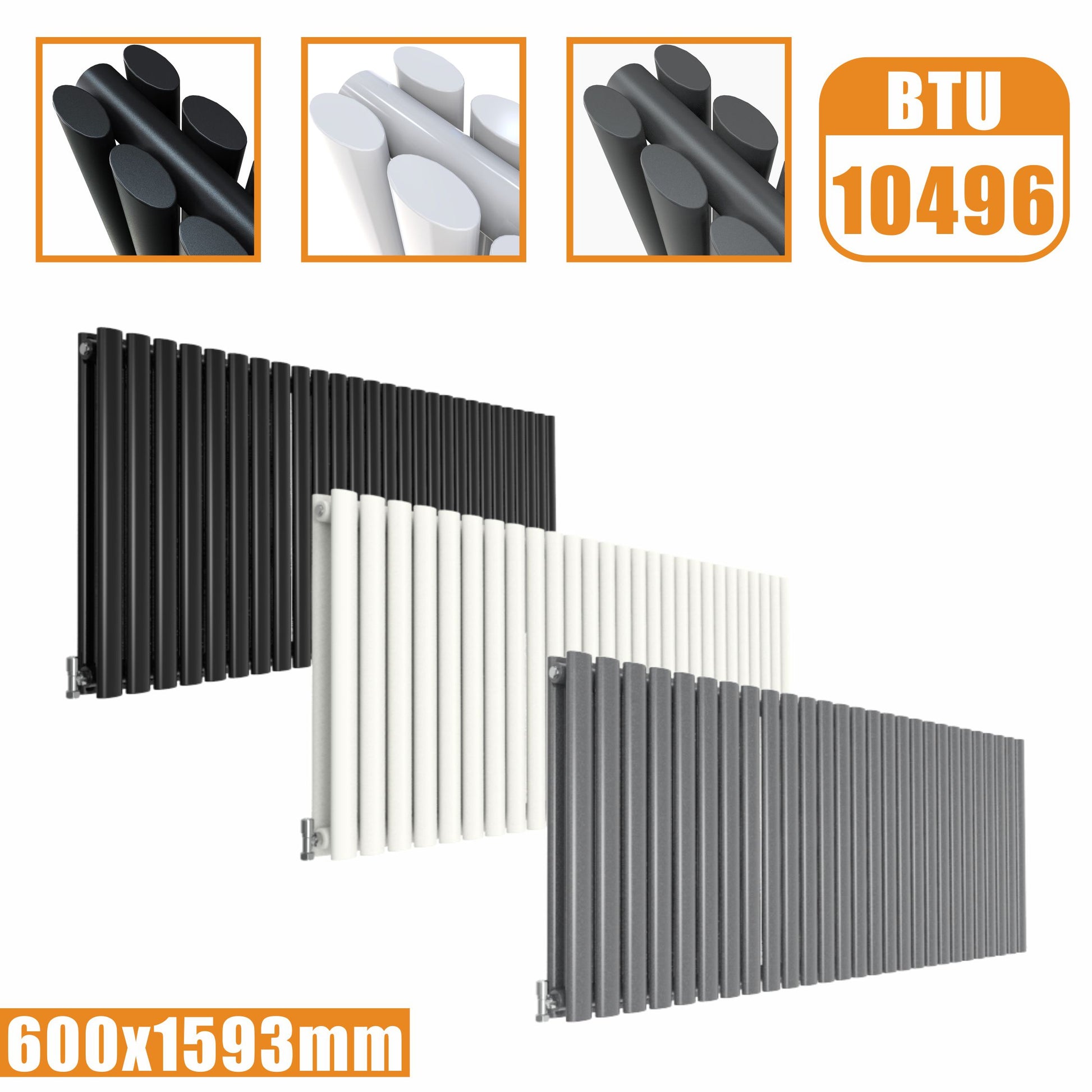

Oval column 600 x 1593 mm Double 27+27 51.3 3075 10496
Click to view

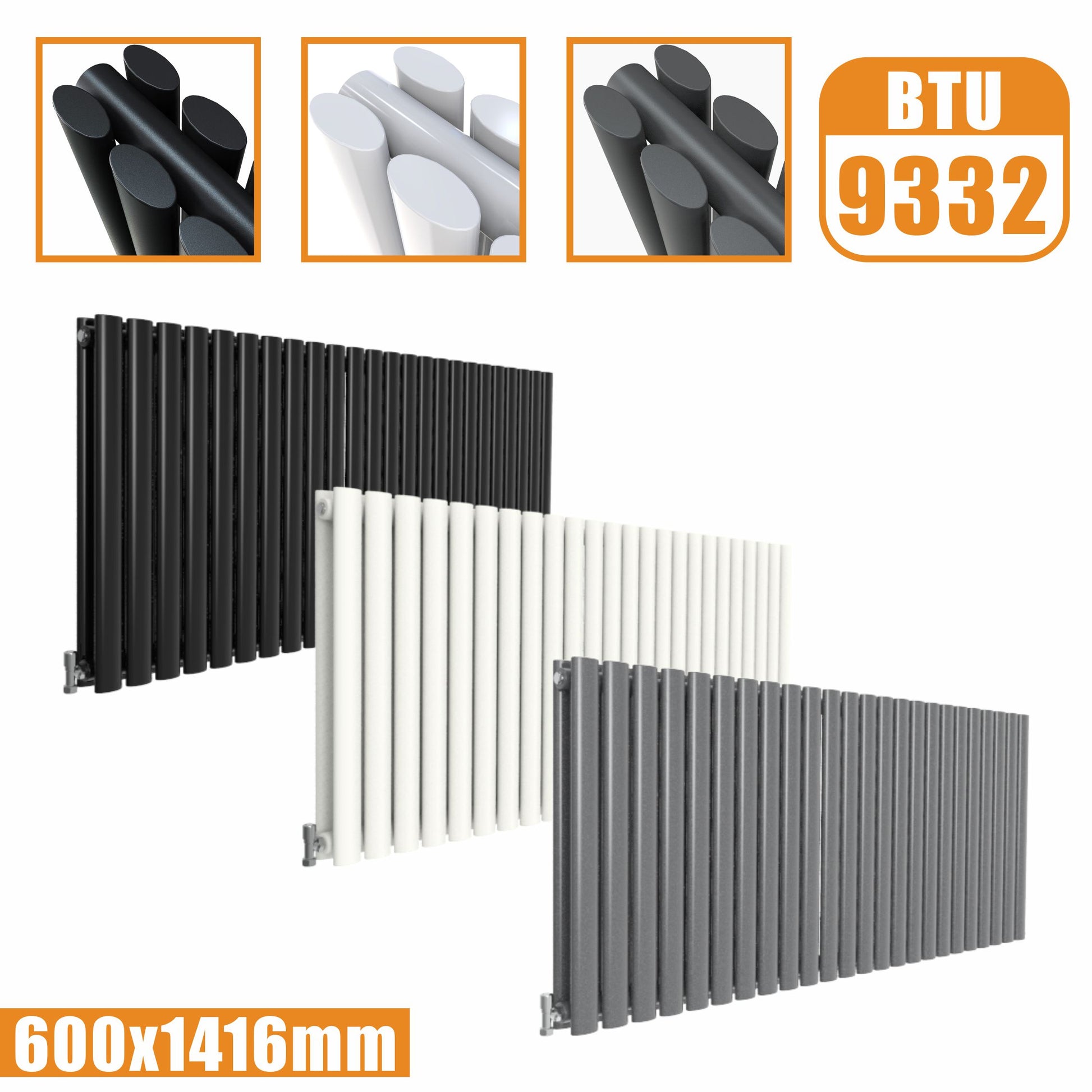

Oval column 600 x 1416 mm Double 24+24 45.6 2734 9332
Click to view

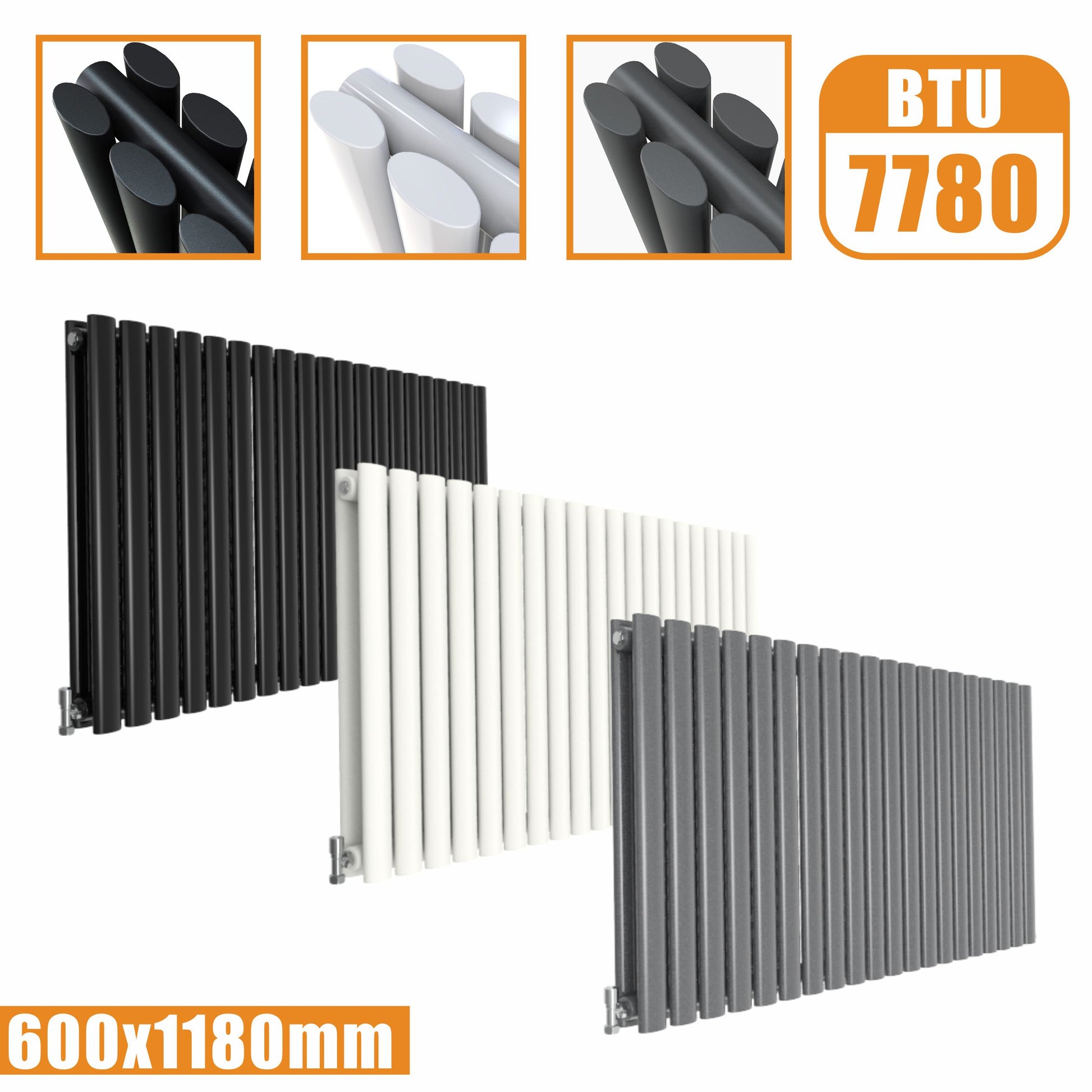

Oval column 600 x 1180 mm Double 20+20 38 2280 7780
Click to view

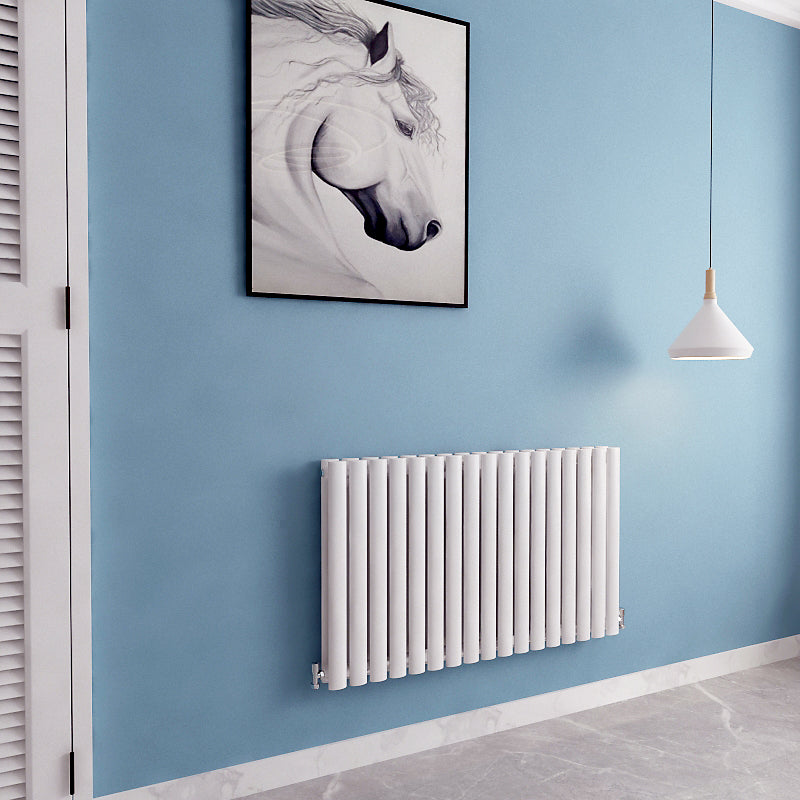

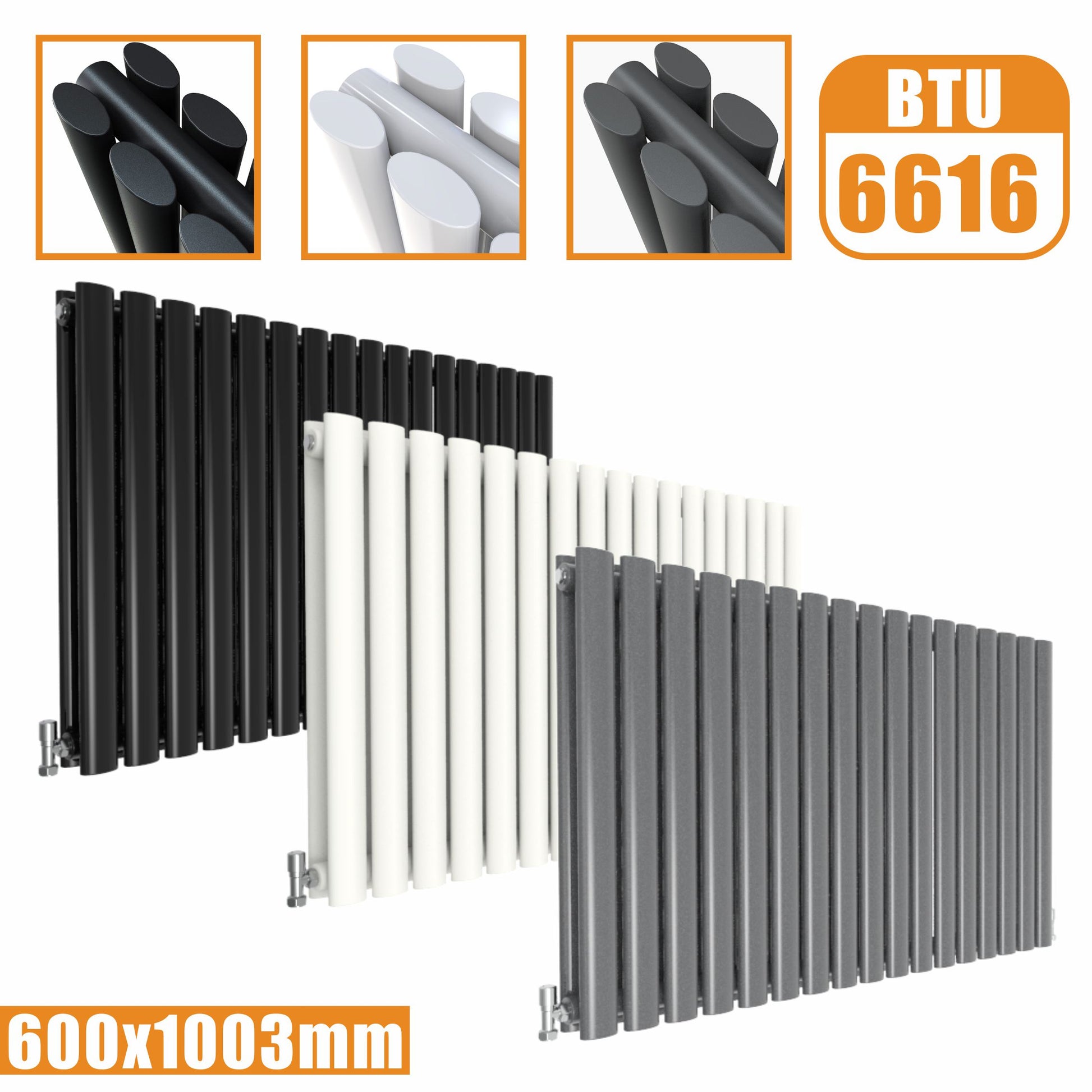

Oval column 600 x 1003 mm Double 17+17 32.3 1938 6616
Click to view

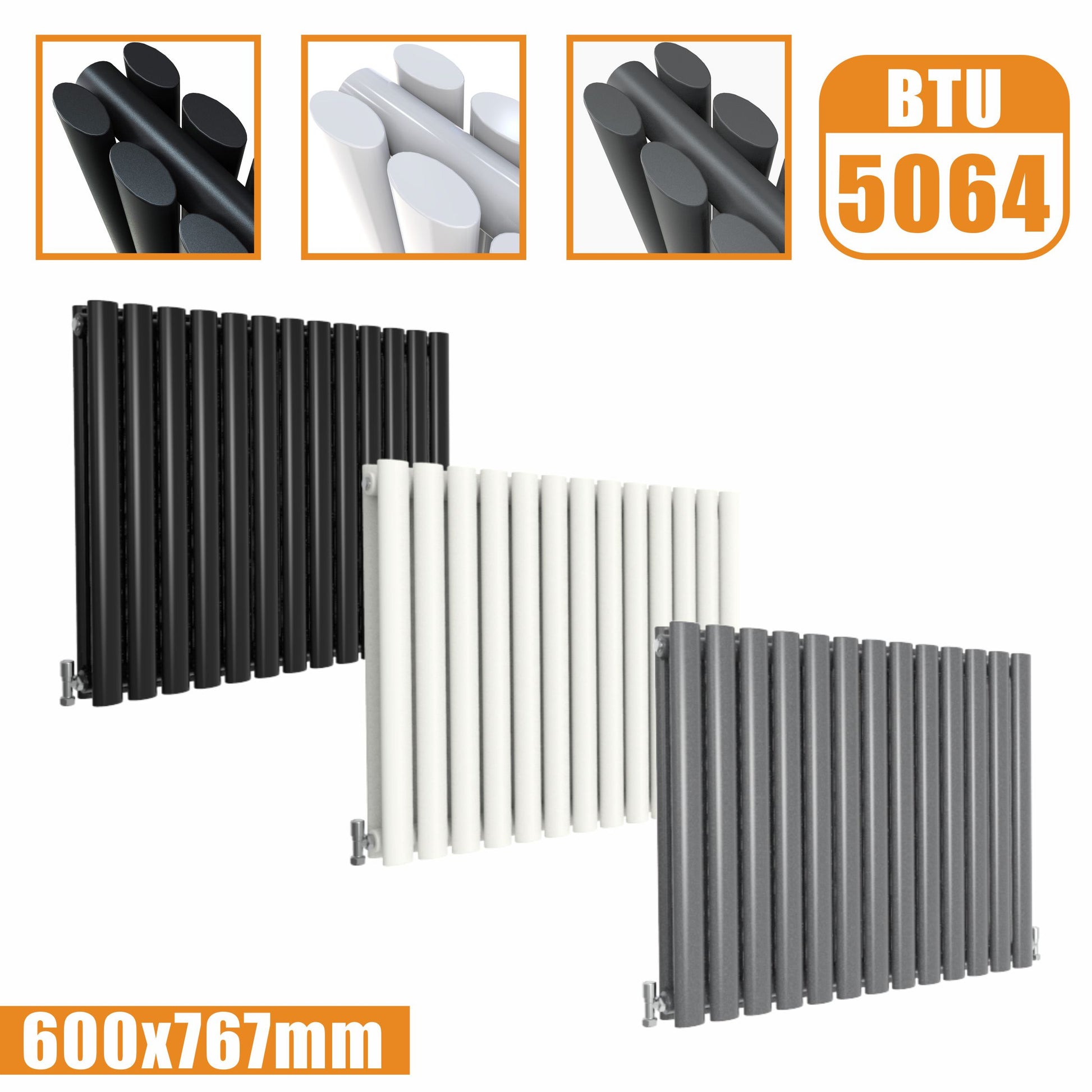

Oval column 600 x 767 mm Double 13+13 24.7 1484 5064
Click to View

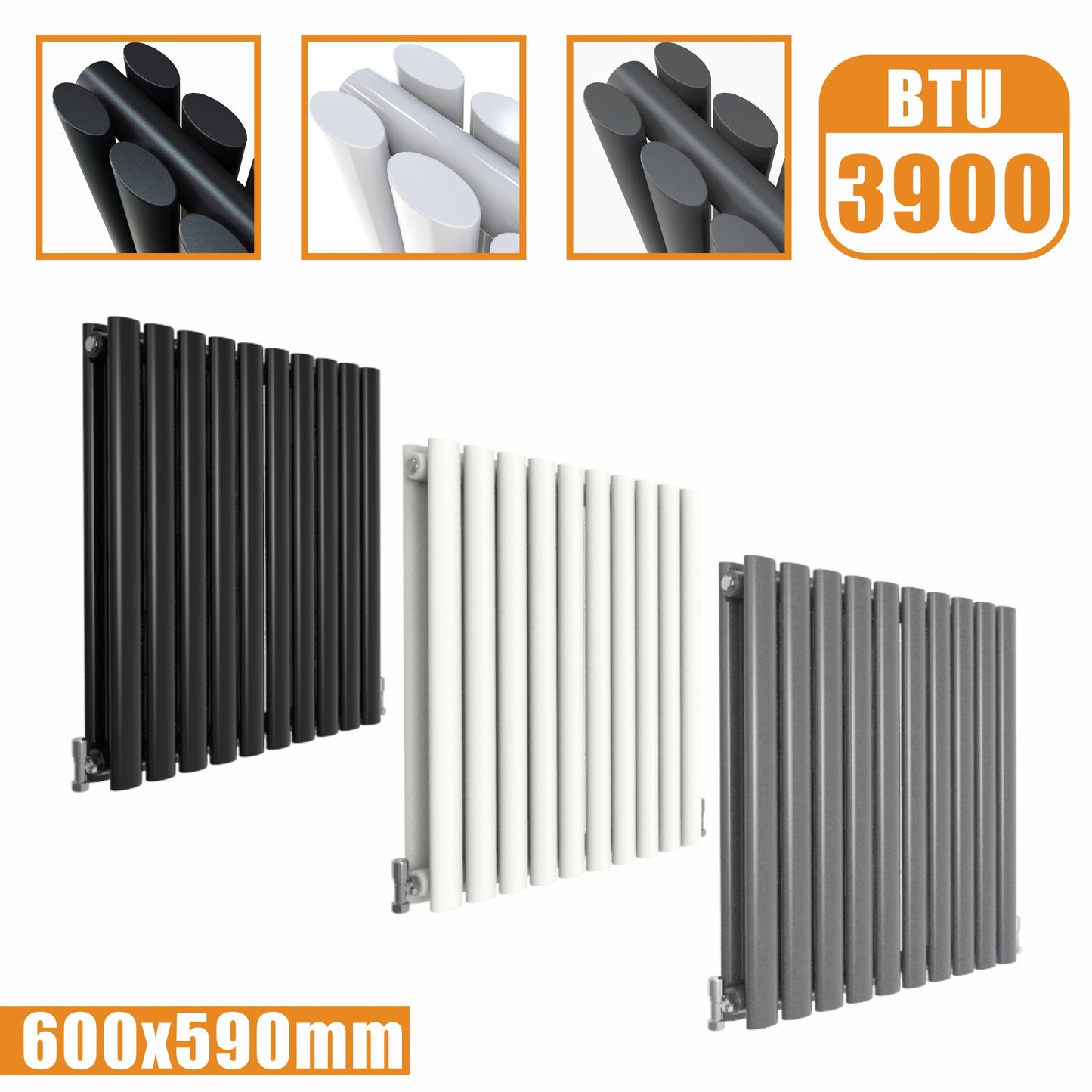

Oval column 600 x 590 mm Double 10+10 19 1143 3900
Click to View

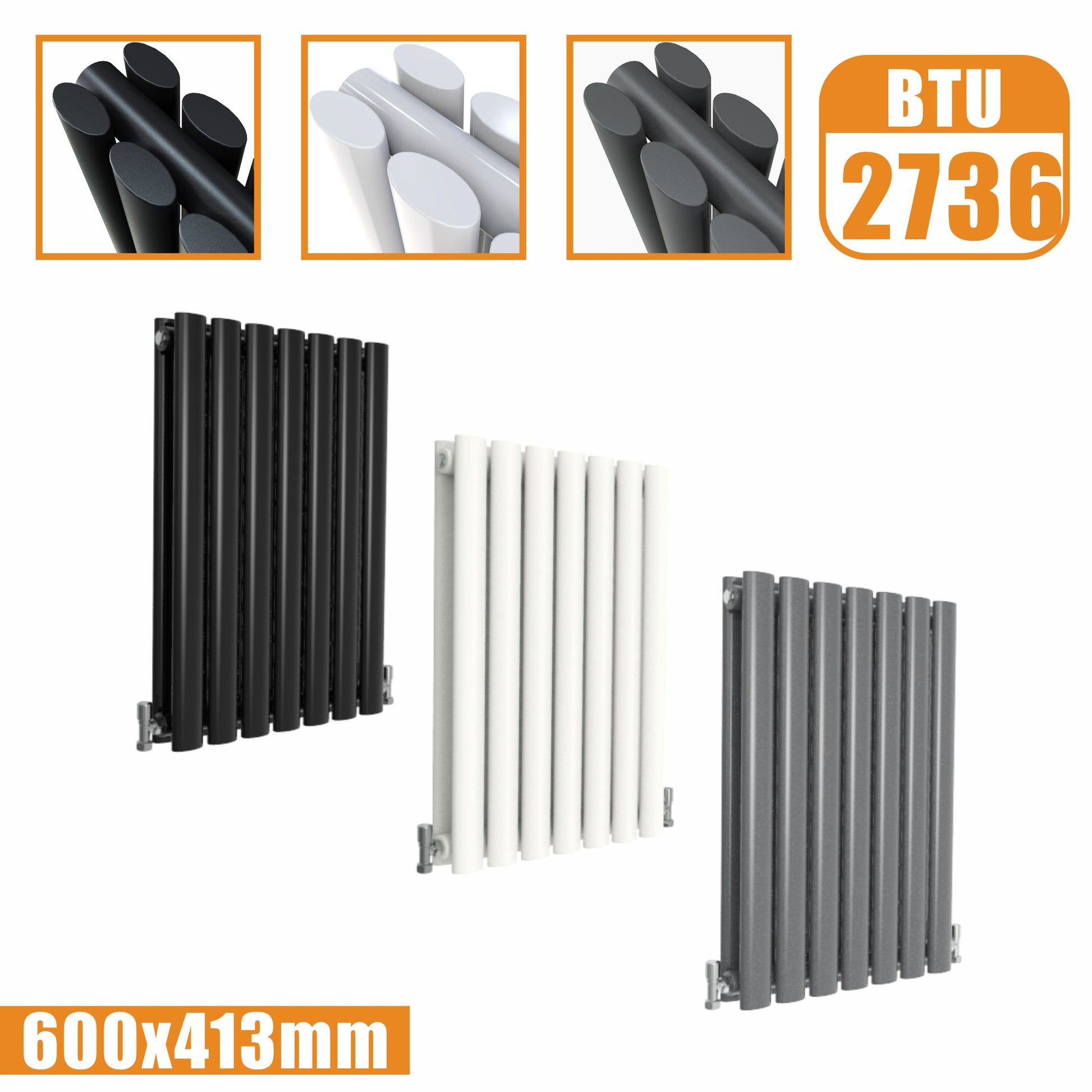

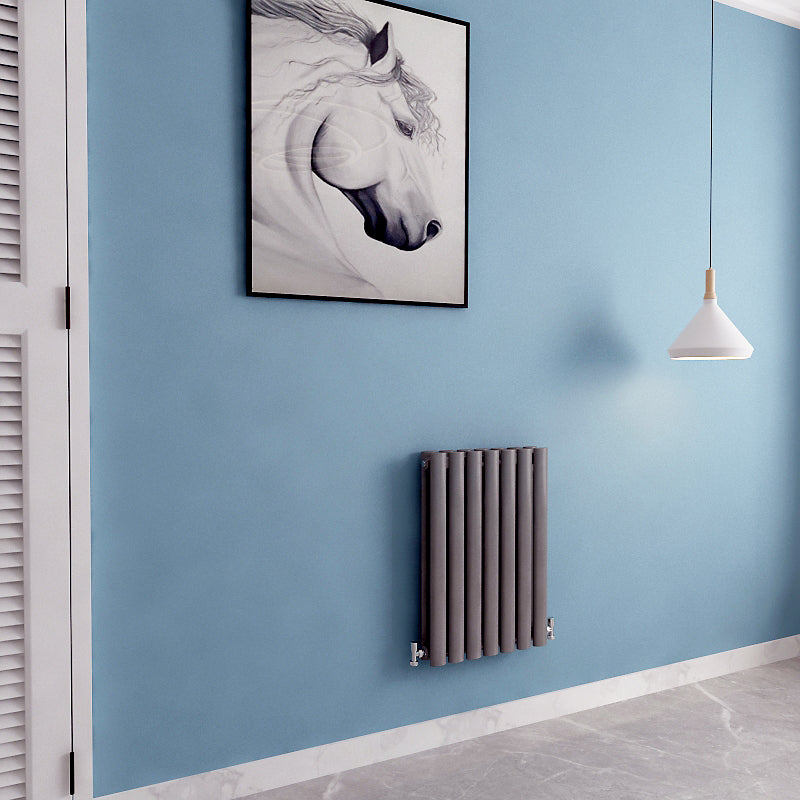

Oval column 600 x 413 mm Double 7+7 13.3 802 2736
Click to View

Notice: There are two ways for delivery according to different postcodes : Next working day and three working days. Pls subject to map and below content for delivery, thanks!


*Not recommend to install any pipework before you receive your radiator.


*BTU for reference only, it depends on various elements such as flow temperature and indoor temperature.
